Material                                     EPS

Density                                       150 kg / m³ +/-1%

Thermal conductivity              0,04 W / (m *°C )
EN 13163:2019

Mounting length                       1180 mm

Mounting width                        100 mm

Linear dimensions                   63×100×1200

Compressive strength            1900 kPa +/-5%
(10% of linear deformation)
EN 13163: 2019

Fire resistance                          Class E
EN 13501-1:2016

Water absorption during        0,5%
prolonged full immersion,
% by volume
EN 13163:2019

Hardness according                80 +/- 2 units
to Shore A, in units

EPS-EN 13163-L1-W2-T2-S2-P4-CS(10)1900-WL(T)0,5

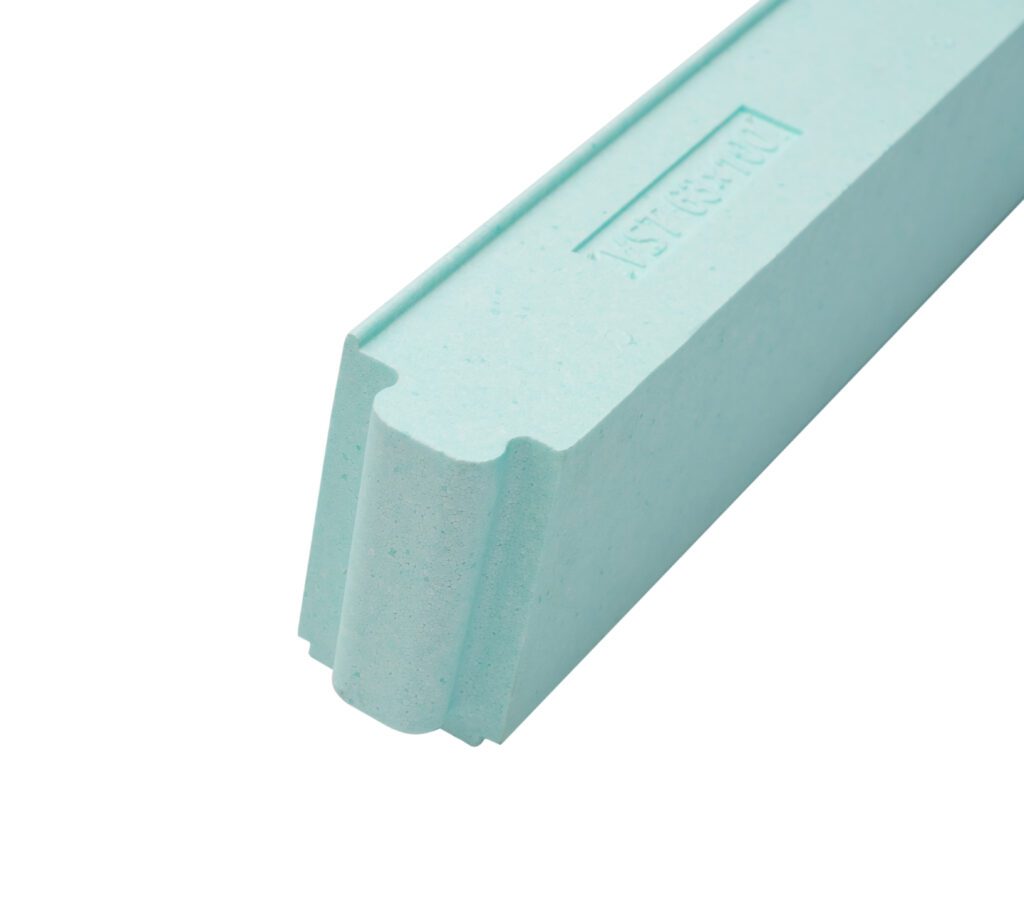

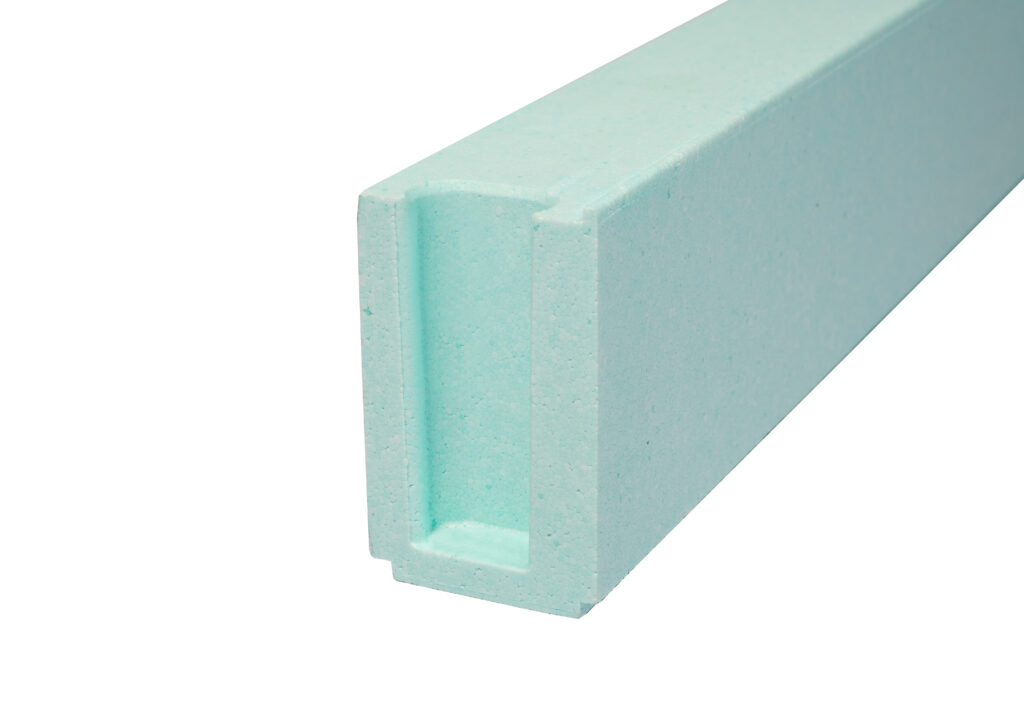

The solution to the problem of freezing at the bottom of the window at low temperatures. New innovative product – thermal insulation profiles VSThermo with high density.

Application as a support profile in metal-plastic and aluminium translucent structures of window for thermal rupture under door sills, sliding systems and window structures.

• U = 0,63 W⁄m²×K
• R = 1.59 m²×K/W
